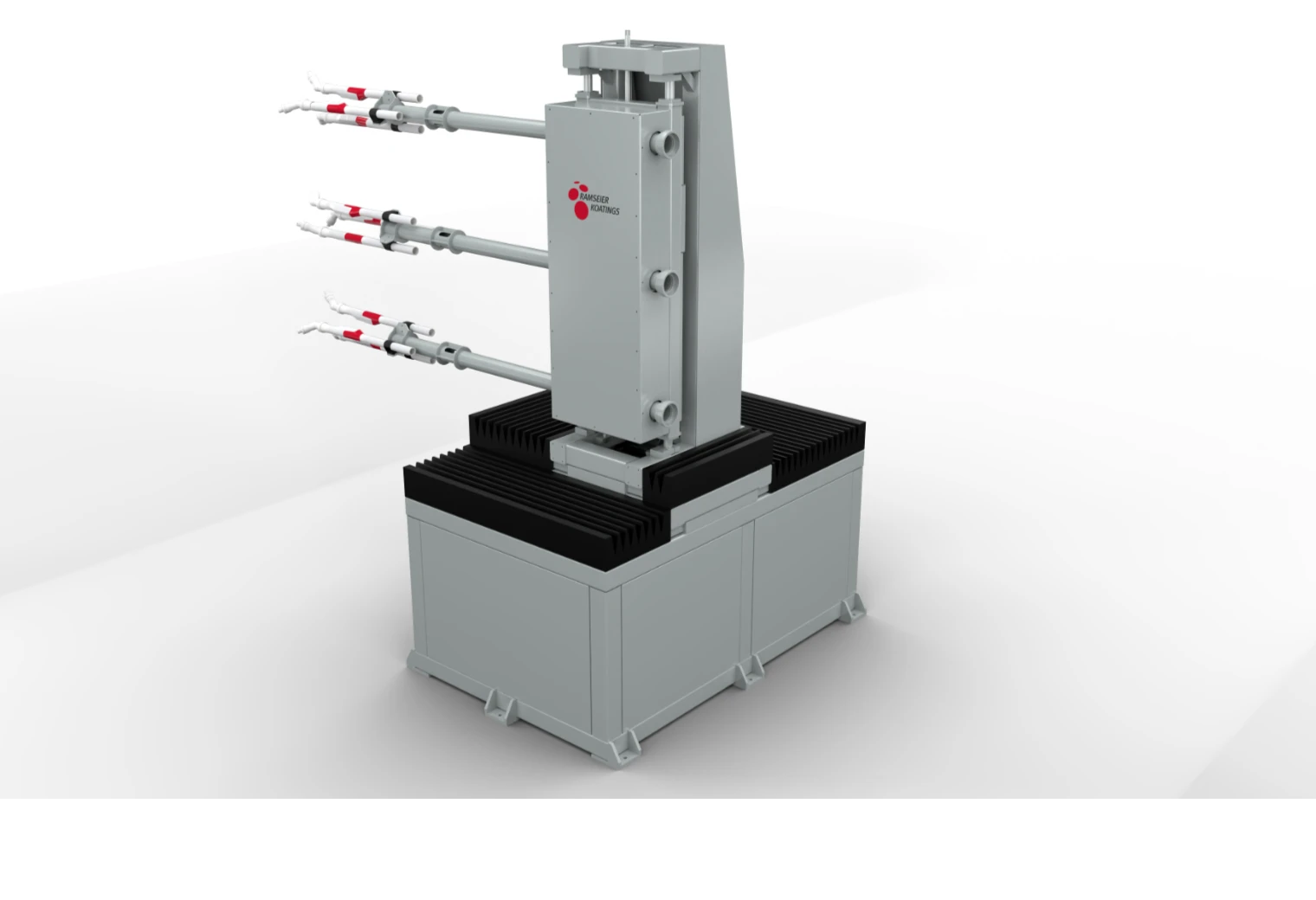

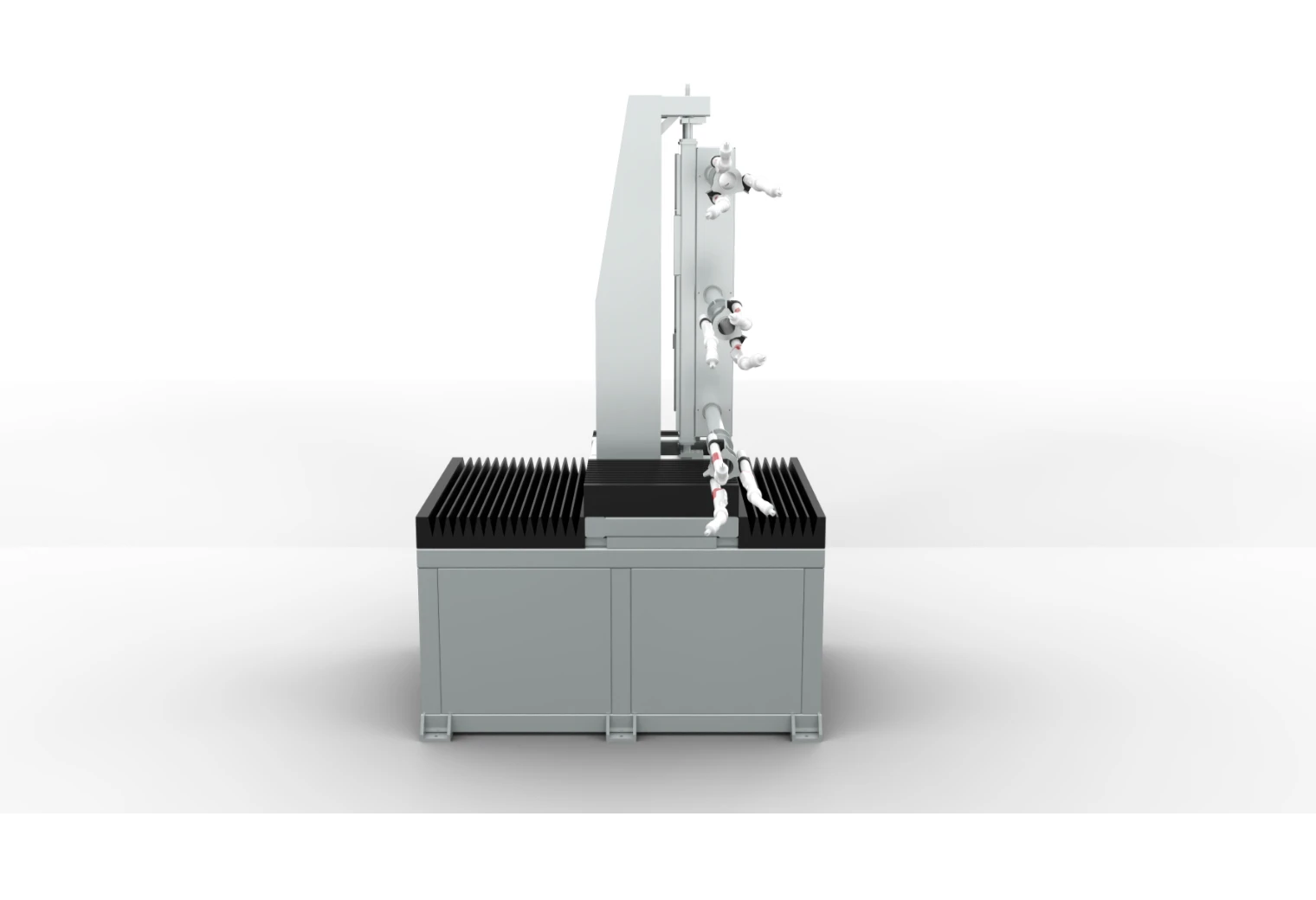

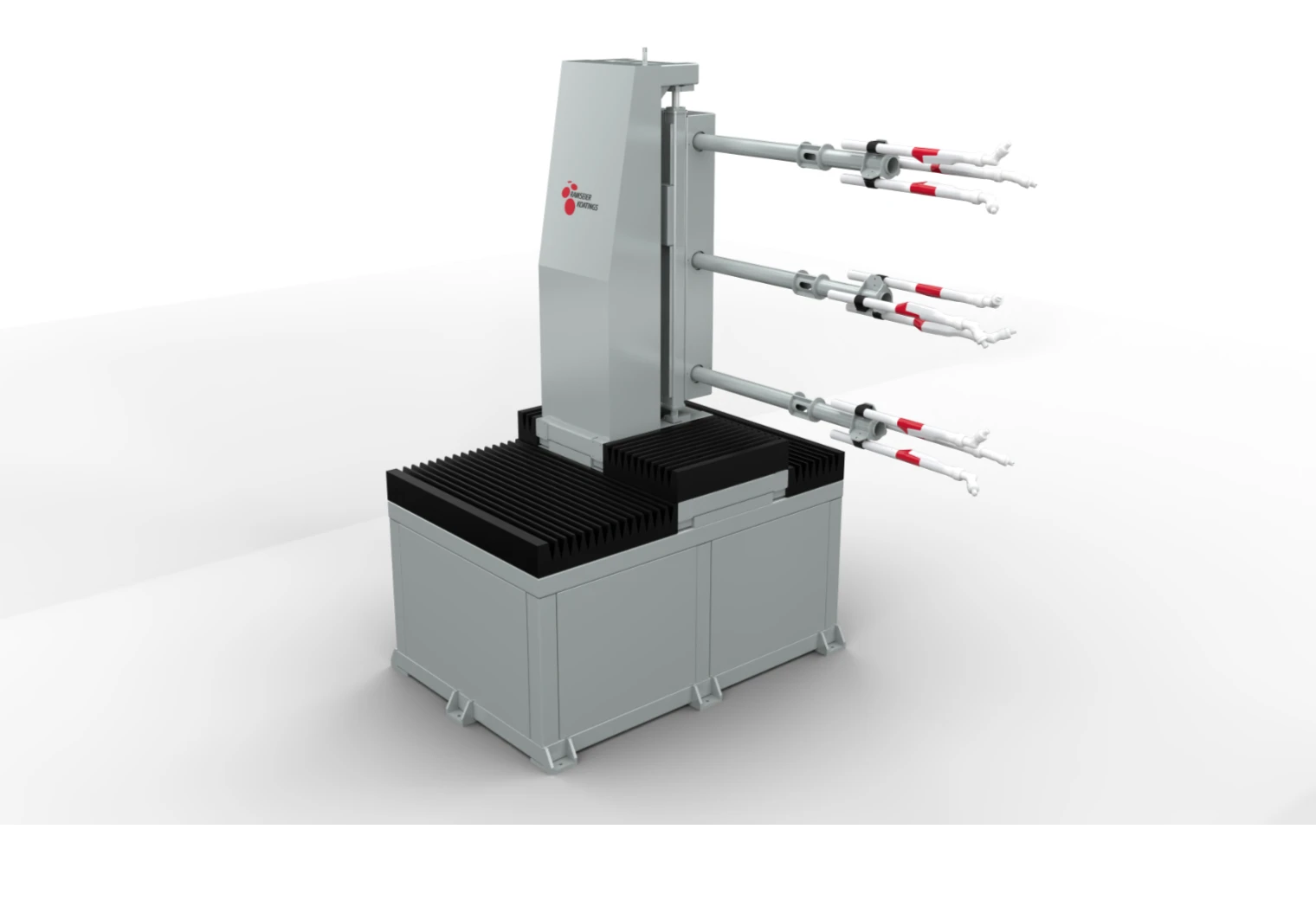

The servo motor drives the synchronous pulley mechanism to precisely control the three-dimensional movement of the slide table. Realize the linkage of the X-axis (left and right following), Y-axis (forward and backward advancing and retreating), and Z-axis (rotation) of the spray gun

The number of spray guns in a single group is dynamically configured based on the hub size (φ16-24 inches) and the production line speed

It is equipped with a high-efficiency electrostatic spray gun as standard, with an atomization uniformity of over 98%. It is compatible with the suspension chain conveying system and is applicable within a speed range of 0-5m/min

Support online speed detection and automatic adjustment of spraying parameters

This equipment can be connected to the MES system to achieve traceability of spraying data. Through modular design, it realizes flexible production, meeting the spraying requirements of different specifications of wheel hubs, with a powder utilization rate of over 95%.
