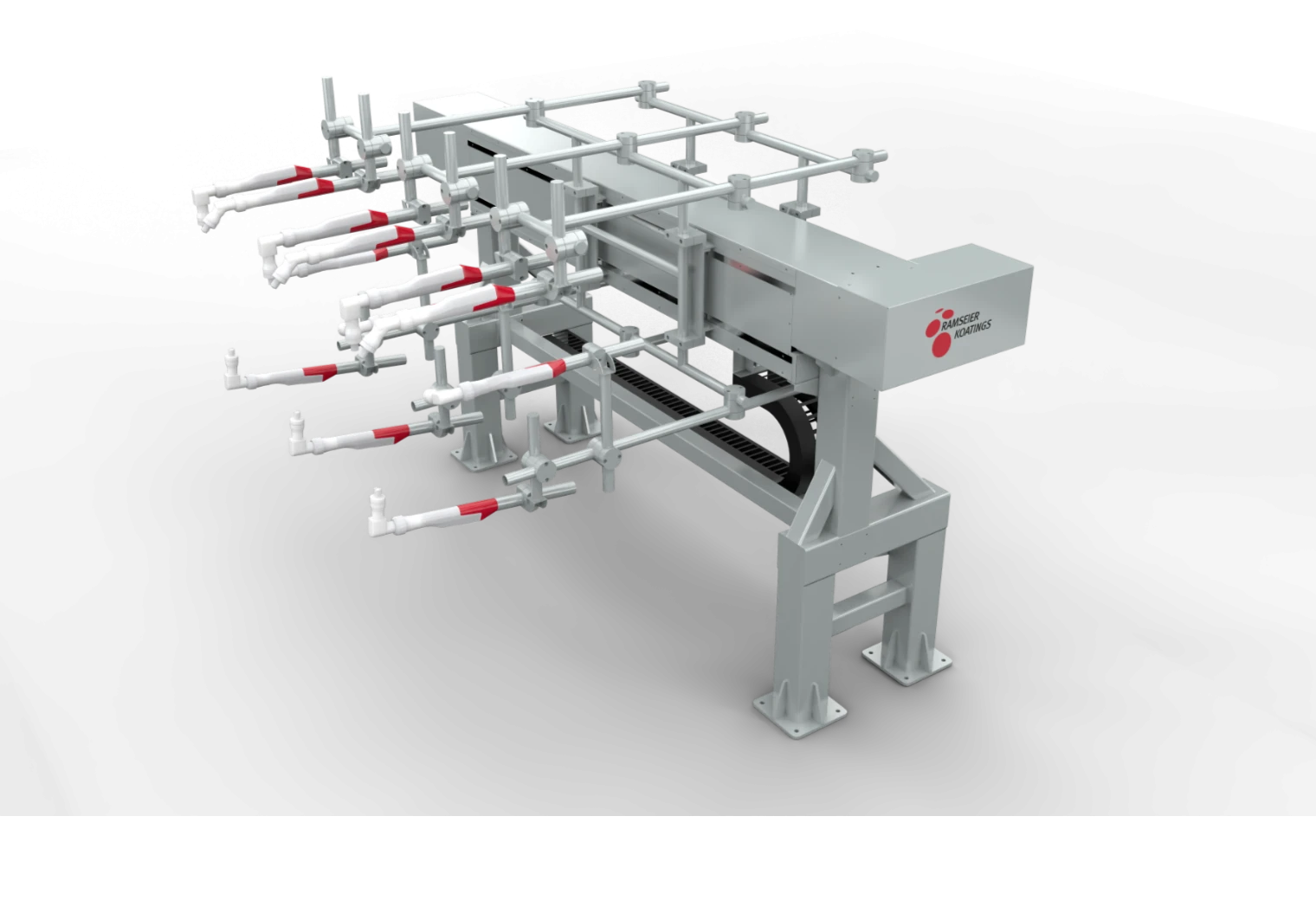

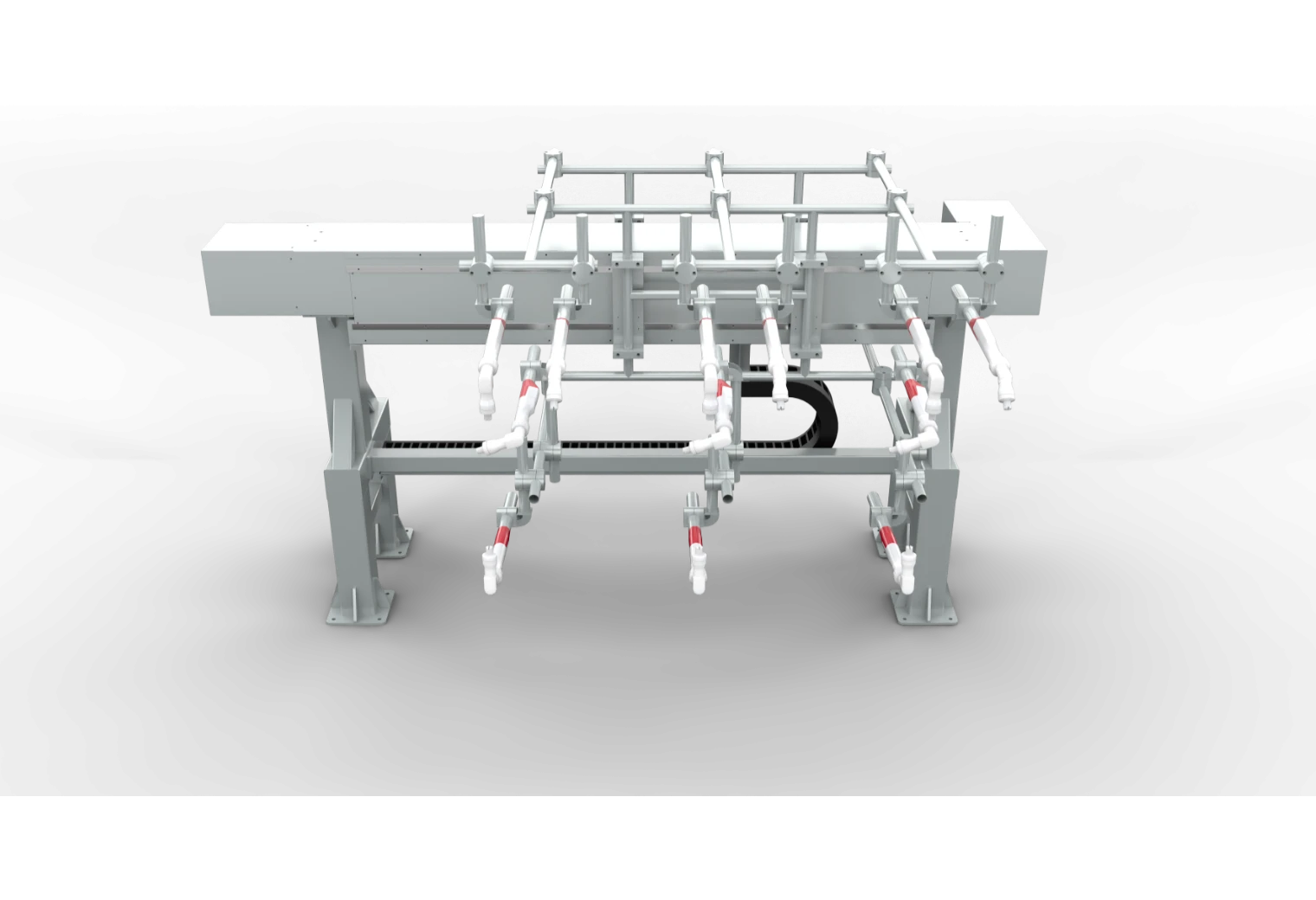

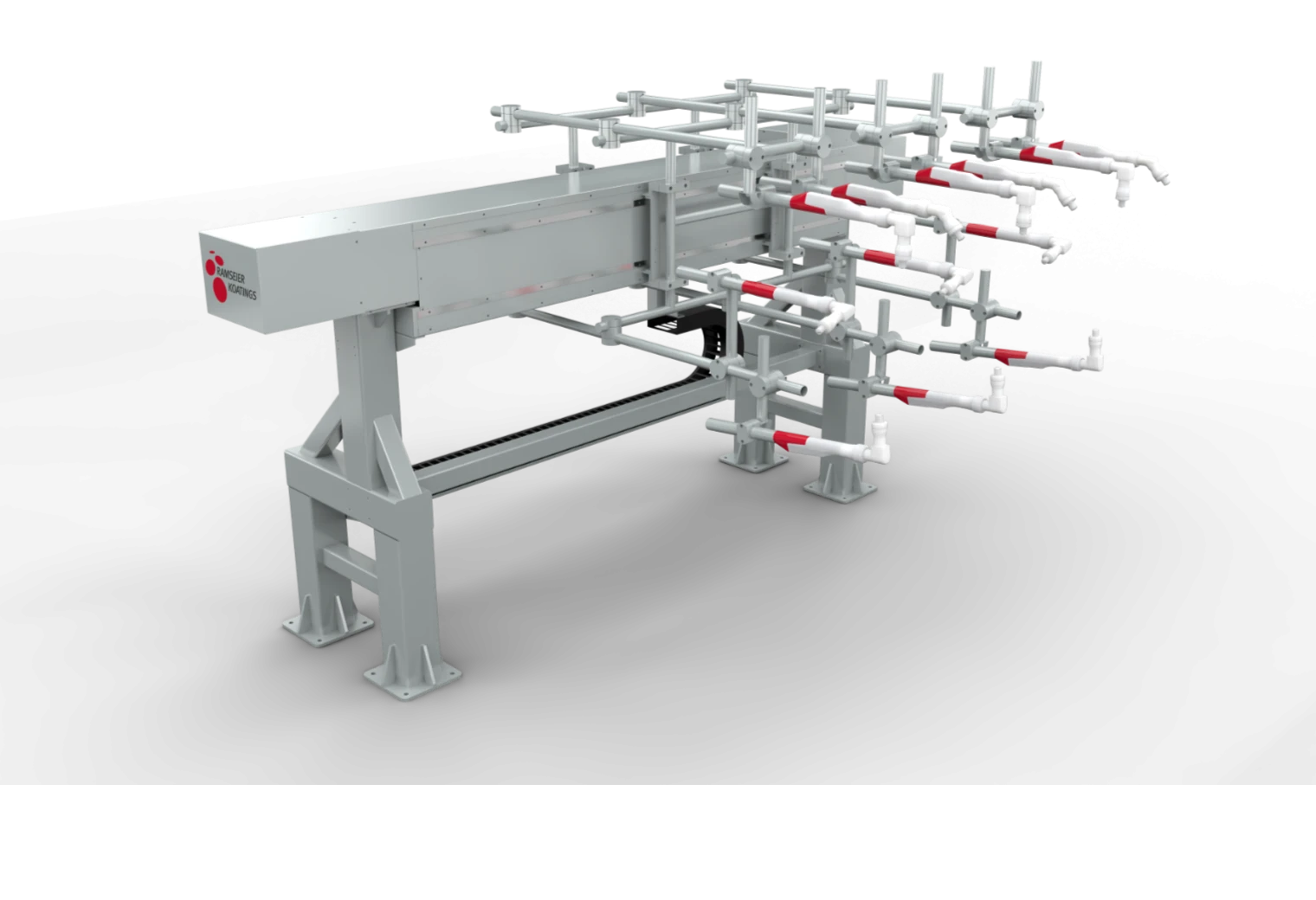

Servo motor + synchronous pulley drive precisely controls the movement of the wheel frame, achieving stable following spraying of the spray gun. The manual adjustment mechanism can flexibly adjust the installation position of the spray gun and adapt to wheels of different sizes

The number of spray guns in a single group is dynamically adjustable and intelligently matched according to the hub size (standard compatibility: 15-22 inches) and suspension speed (0-5 m/min)

The high-pressure electrostatic spray gun ensures uniform atomization and a powder utilization rate of over 80%

Compatible with continuous production lines, compatible with suspension chain conveying speeds of 0-5m /min, and supports online speed regulation to match spraying parameters

Optional PLC interlocking control is available to automatically adjust the spraying trajectory
